Cable Clamp
Leading Manufacturers, Exporters and Wholesaler of Aluminum Strip Trefoil Clamp, Nylon Cable Cleats, Single Cable Clamp, Trefoil Aluminium Cable Clamp and Trefoil Cable Clamp from Ahmedabad.

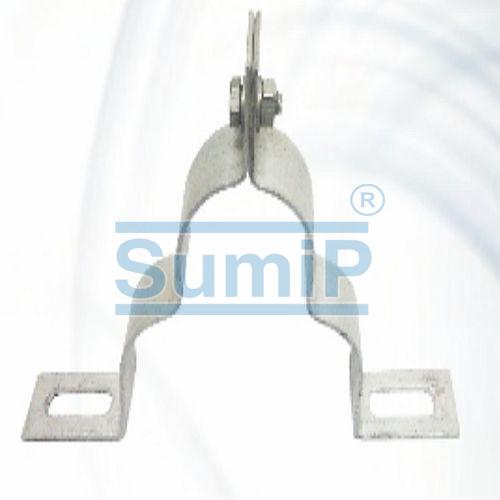

| Business Type | Manufacturer, Exporter, Supplier |
| Type | Strip Trefoil Clamp |
| Material | Aluminum |
| Color | Silver |
| Usage | Securing And Supporting Cables In A Trefoil Formation |
| Size | Standard Size For Cable Diameters Up To 50mm |
| Durability | Durable For Long-term Use |
| Installation | Easy To Install With Standard Tools |
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Nylon |
| Color | Black |
| Application | Securing Cables In Place |
| Type | Cable Cleats |
| Size | Available in different Sizes |
| Durability | High |
Cable cleats are designed to fix, retain, and support cables in various applications. They play a crucial role in situations where short-circuit faults may occur. By containing cables during a fault, cable cleats facilitate the restoration of the circuit once the fault is repaired. When adjacent cables carrying three phase current experience a short-circuit fault, the induced magnetic fields create significant opposing forces on the cables. To ensure a safe installation, cable cleats must be well designed and thoroughly tested.
Application of Cable Cleats
- Cable cleats are suitable for various sectors like.
- Power Generation
- Transmission and Distribution
- Offshore Oil and Gas
- Shipping/Marine
- Water and Sewage Treatment Work
- Petrochemical Plants
- Airports, Ports, Tunnels, etc.
For cable installations on cable ladder, tray and other cable management system or buried direct into the ground.

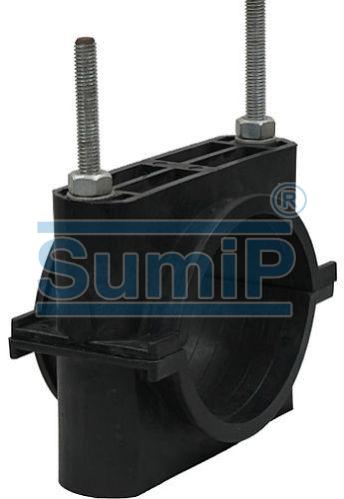

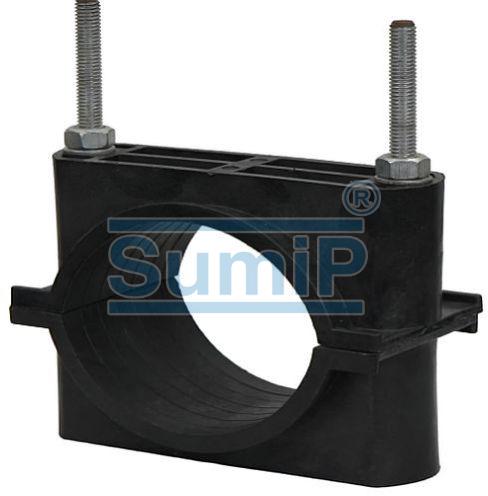

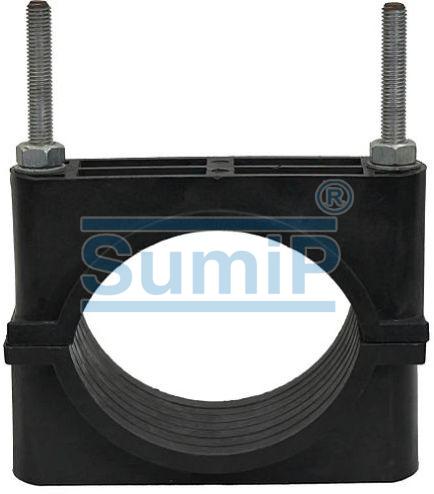

| Business Type | Manufacturer, Exporter, Supplier |
| Size | 42mm To 120mm |
| Application | Securing Single Cables |
| Color | Black |
| Material | Plastic |
| Type | Cable Clamps |
| Quantity | 1 Piece |
| Dimensions | Varies |

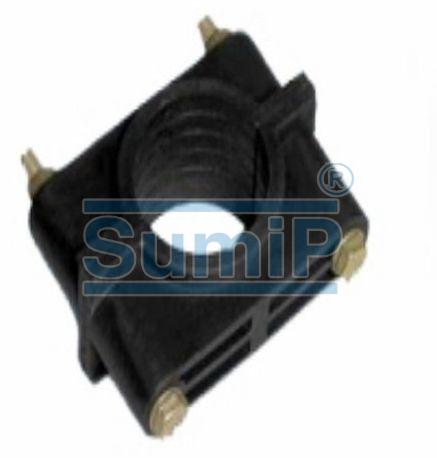

We also supply various types of single clamps used for LT and HT single cables.
- SC Series : Sizes available from 42mm to 120mm as per cable Diameter
- Hardware : MS Zinc Passivated with optional Hardware available in hot dip galvanized or SS 304/316

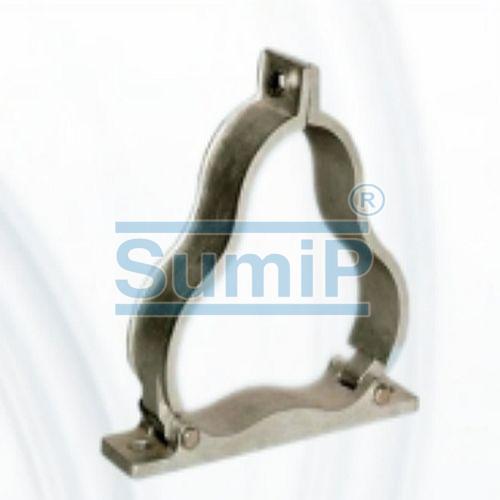

| Business Type | Manufacturer, Exporter, Supplier |
| Type | Cable Clamp |
| Material | Aluminium |
| Color | Silver |
| Usage | Securing Cables In Electrical Installations |
| Size | Various Sizes Available |
| Weight | Lightweight |
| Compatibility | Compatible With Standard Cables |
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Cable Clamp |
| Material | Trefoil |
| Color | Black |
| Packaging Type | b |
| Usage | Securing Cables In Place |
| Dimensions | 2.5 X 1.5 X 0.5 Inches |

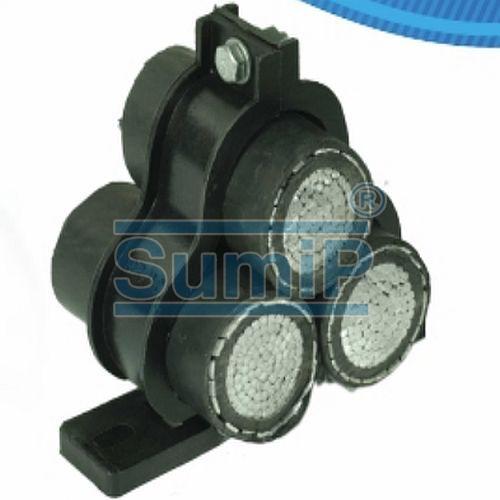

Trefoil clamps are used for high voltage single core cables where the current rating is high and 3 core cables are not available. Sumip Trefoil clamps are used for laying single core cables in Trefoil touching formation which helps to maintain magnetic symmetry thereby avoiding electromagnetic heating and loss of current. Sumip Trefoil clamps have been moulded from glass fibre filled material.
Short Circuits and Short Circuit Testing
The forces experienced by a cleat during a short circuit are a function of short circuit current, cleat spacing and the distance between the cable centers (in the case of trefoil arrangements, this is the cable diameter).
The Sumip cable cleat has undergone extensive, rigorous short circuit testing and has been approved and certified to withstand 'Short-Time and Peak Withstand Test Current of up to 50 KA RMS, 125KA peak at 1000 mm spacing for 1 second, tested at Electrical Research and Development Association (ERDA). Such results make the Sumip 's cleats as one of the strongest cleats in the market.
- Sumip can also provide clamps which are tested at 50 KA RMS, 125KA peak at 1000 mm spacing for 3 seconds.
- Sumip can also provide specialized clamps required in POWERGRID, WBETCL etc. with Non Magnetic Hardware & Neoprene Rubber Lining as per IS 11149-1987
